Crumb Circuit Simulator

Interactive and immersive learning

CRUMB offers an easy to use and interactive introduction to electronic circuitry. Fully realised in 3D, you can construct prototype circuits as you would at the workbench without the risk of terminal component failure or the hassle of ordering individual components. A broad selection of parts and features offers an insight into many different areas of modern electronics

Large catalogue of components

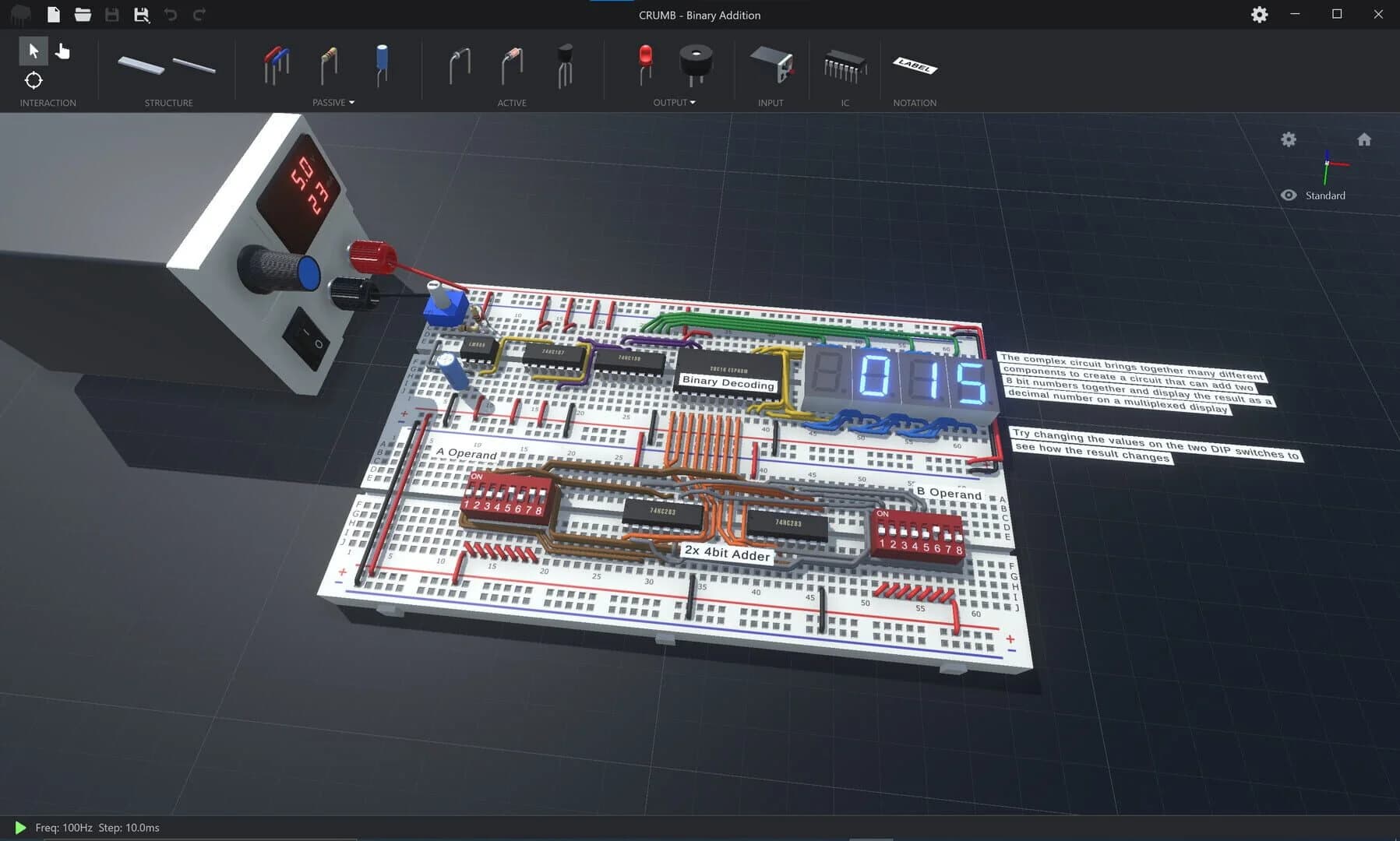

CRUMB has a varied selection of components, even at this early stage in its development. There are no limits to what circuits you can create. CRUMB includes several built-in examples which showcase some of the abilities of CRUMB. This list below highlights some of the included components

• Passives such as Resistors, Capacitors and Inductors
• Tactile, slide and DIP switches
• Semiconductors such as Diodes, BJT Transistors, MOSFETs and Silicon Controlled Rectifiers
• LEDS, Transducers, Seven Segment displays

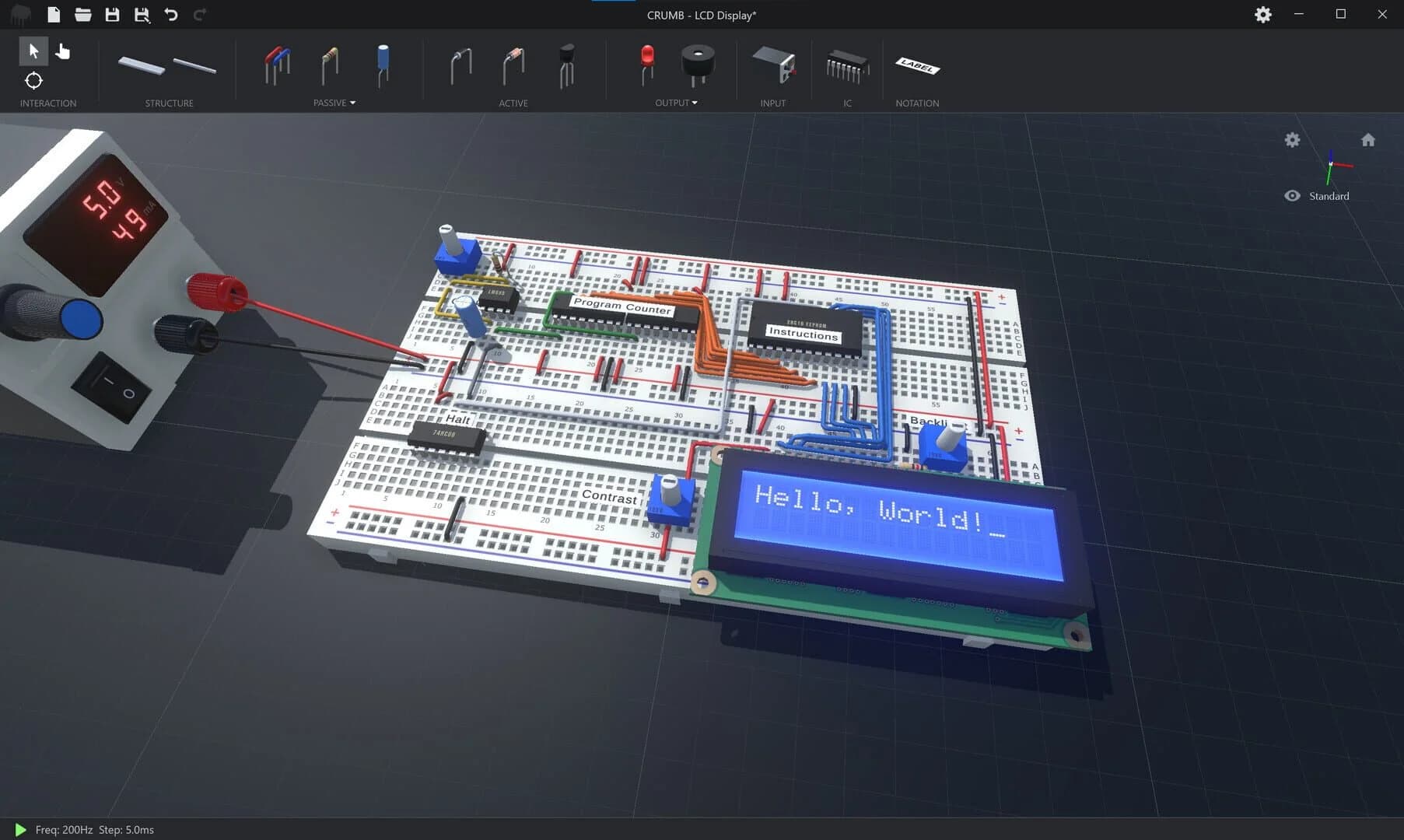

• LCD and TFT displays
• DC Power and Signal Generators

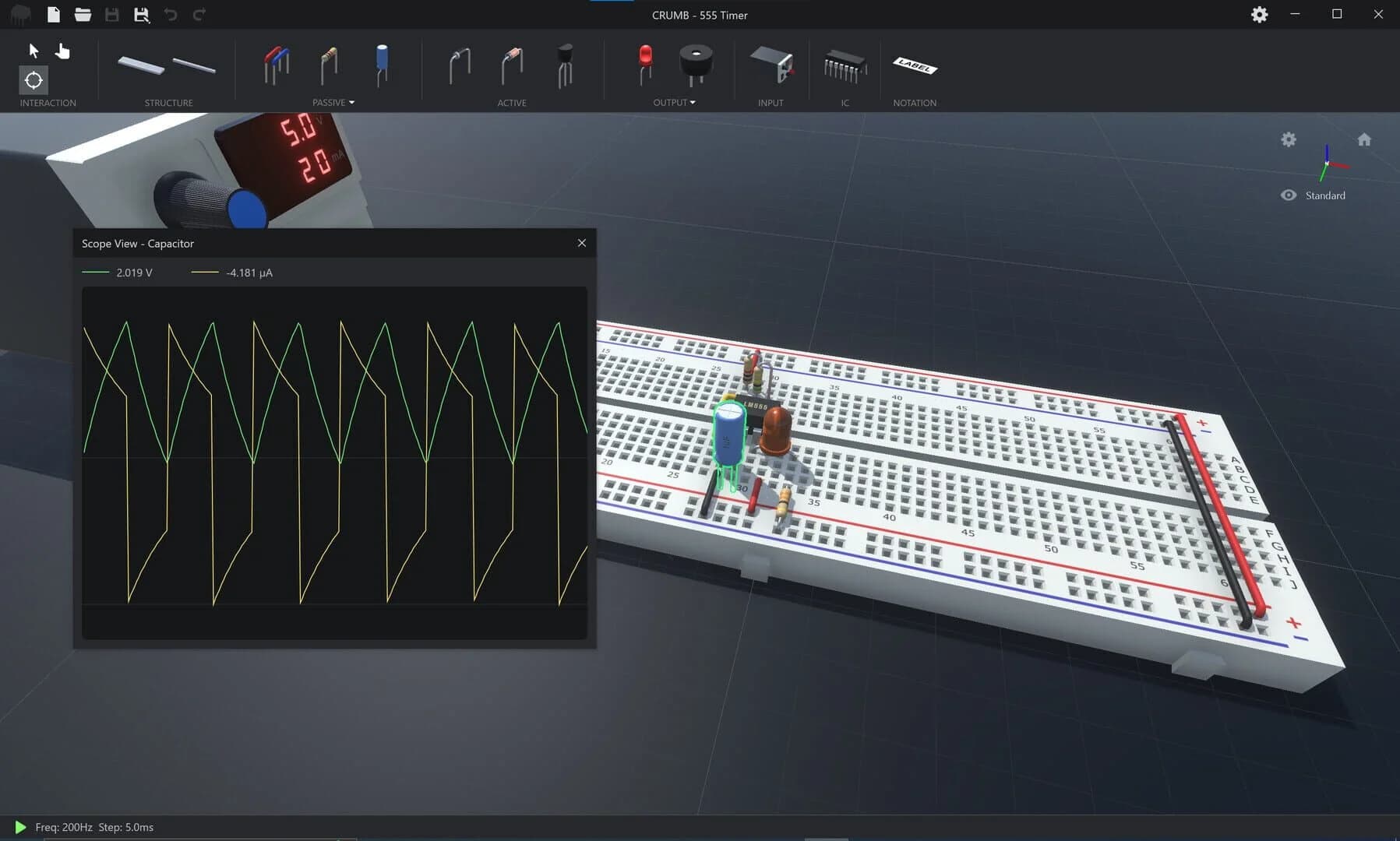

• Large selection of Integrated Circuits ranging from Basic to Complex Logic, Timers, Counters, Memory, EEPROM and Op Amps
• Fully programmable Microcontroller

Advanced features

The latest update has expanded some of the special features included with CRUMB

Code Editor The built-in Code Editor has been expanded to allow the viewing and editing of the Source Files that I have written for the programmable Microcontroller included in CRUMB

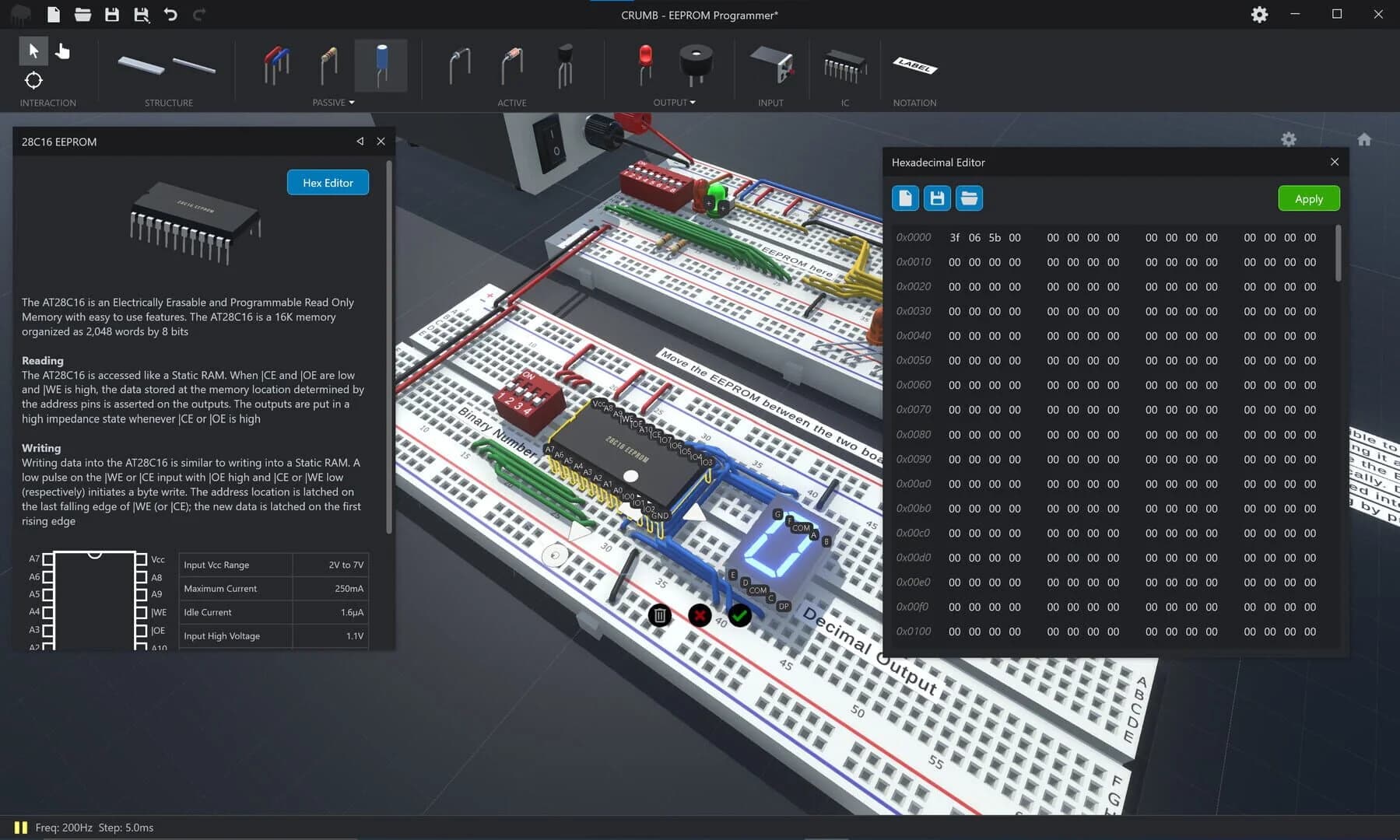

Hex Editor This is an EEPROM available to use which can be programmed via circuitry (see built-in example) or values can be entered manually with the built-in hex editor
